| Size | |
| Installation: | SMD Type |
| Dimensions(mm): | 6.50*6.50*4.00 |
| Electrical Characteristics | |
| Voltage: | 2.5~4.5 |
| Max current consumption(mA): | Max. 120 |
| Coil resistance(Ω): | 12.0±2.0 |

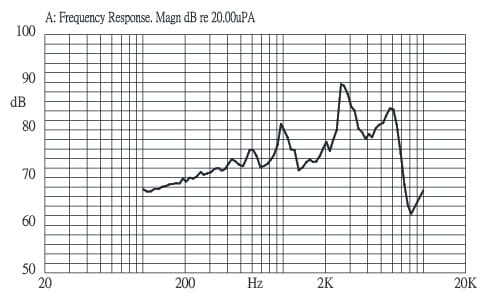

| SPL(dB): | Min.85dBA(Typical 90)@10cm |
| Frequency(KHz): | 2.70 |
| Others | |
| Operation Temp.(℃): | -40~85 |
| Storage Temp.(℃): | -40~+85 |
| Material: | L.C.P (Black) |
