Size
Shape: SMD
Dimensions(mm): 13.00*13.00*4.00
Electrical Characteristics
Rated Input (W): 0.70
Max. Input (W): 1.00
Impedance(Ω): 8±15%@1.5KHz 1.0V
FO (Hz): 850±20%@1.0V

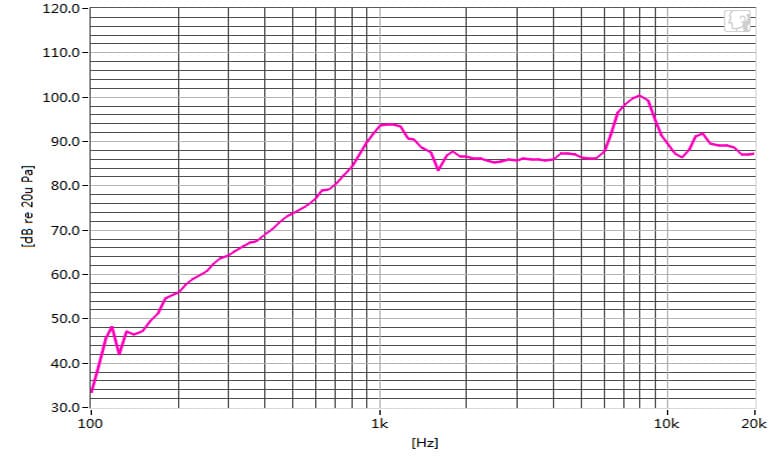

SPL(dB): 87±3dB(0.7W/10cm), 70±3dB(1W/1m)@1.0K, 1.6K, 2.0K, 3.2KHz
Frequency(Hz): Fo---20K
Others
Operation Temp.(℃): -30~70
Material: LCP (BLACK) PIN Plating Au 2-3u
