Size

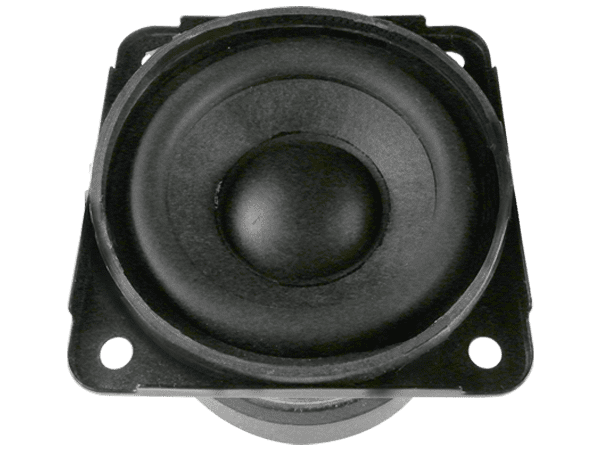

Shape: Square Type
Dimensions(mm): 70.50*70.50*44.00
Electrical Characteristics
Rated Input (W): 10.00
Max. Input (W): 12.00
Impedance(Ω): 4±15%@1.0KHz
FO (Hz): 120±20%@1.0V
SPL(dB): 88±3dB(1W/0.5m)@AVG 0.6K, 0.8K, 1.0K, 1.2KHz

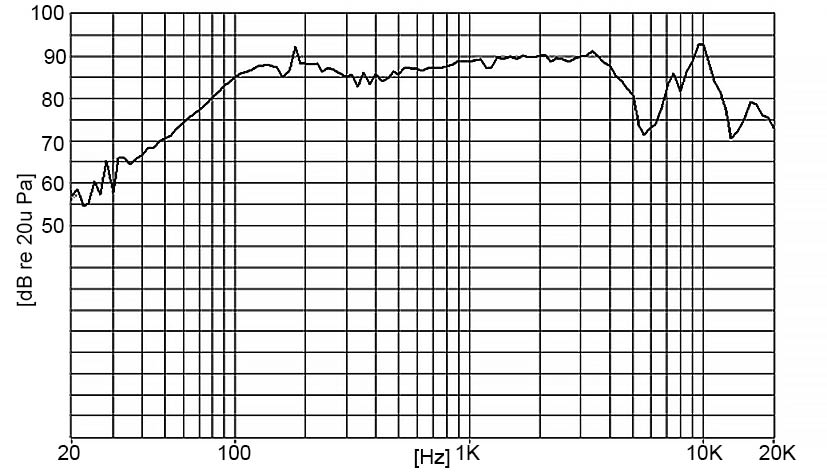

Frequency(Hz): Fo---10K
Others
Operation Temp.(℃): -25~70
Material: SPCC
