| Size | |
| Dimensions(mm): | 14.2*3.95 |
| Electrical Characteristics | |
| Rated Power(mW): | 3.0 |
| Max.Input Power(W): | 15 |
| Output Impedance: | 29±10%@1.5KHz |

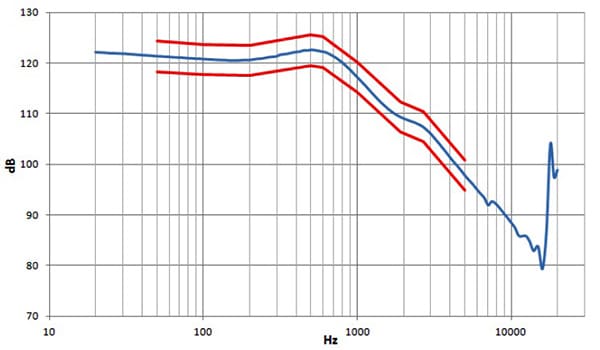

| SPL(dB): | 117±3dB@1.0KHz 179mV with IEC318 Coupler |
| Frequency(Hz): | 100~2K |
| Others | |
| Operation Temp.(℃): | -40~80 |
| Storage Temp.(℃): | -40~+80 |
| Material: | Metal |
