| Size | |
| Dimensions(mm): | 40.0*8.90 |
| Electrical Characteristics | |
| Rated Power(mW): | 20.0 |
| Max.Input Power(W): | 40 |
| Output Impedance: | 16±15%@1.5KHz, 1.0V |
| SPL(dB): | 123±3dB@1.0KHz 565mV rms with IEC318 Coupler |

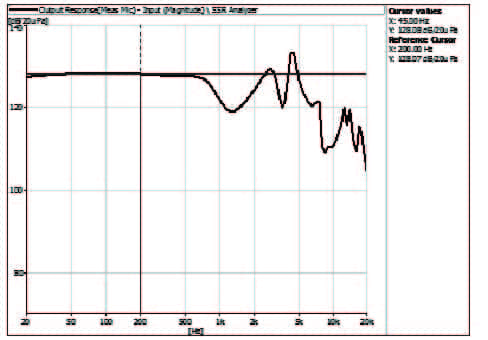

| Frequency(Hz): | 85~8K |
| Others | |
| Operation Temp.(℃): | -25~50 |
| Storage Temp.(℃): | -25~+50 |
| Material: | Metal |
