| Size | |

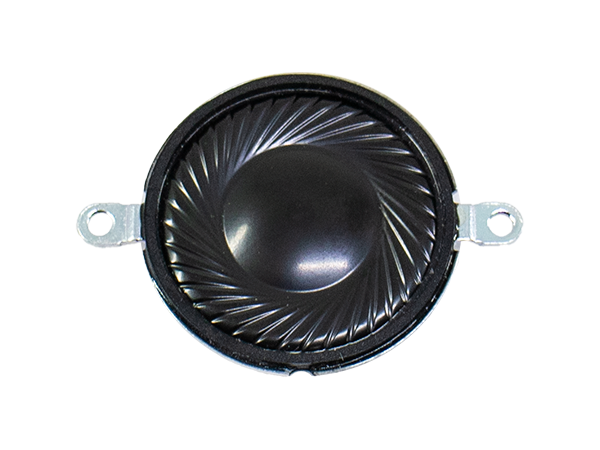

| Shape: | Round Type |
| Dimensions(mm): | 28.00*4.95 |
| Electrical Characteristics | |
| Rated Input (W): | 1.50 |
| Max. Input (W): | 2.00 |
| Impedance(Ω): | 8±15%@2.0KHz 1.0V |
| FO (Hz): | 850±20%@1.0V |

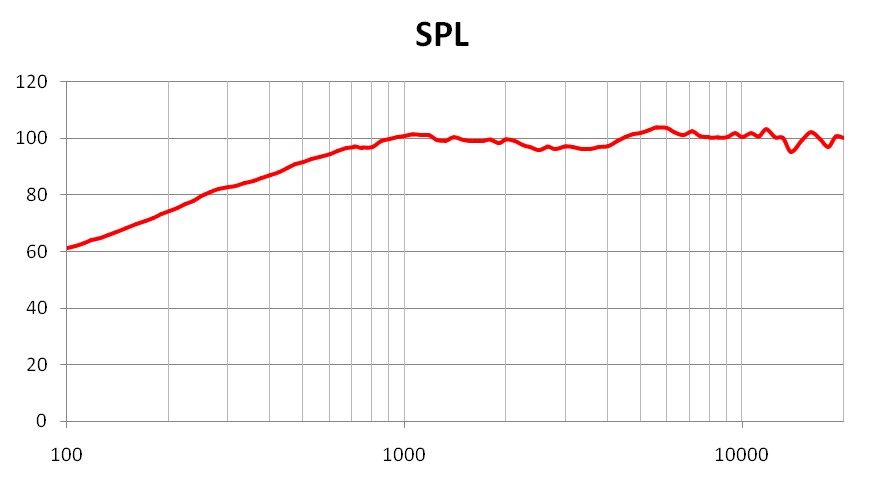

| SPL(dB): | 98±3dB(0.1m/3.46Vrms)@ 2.0KHz |
| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -30~70 |
| Material: | SPCC |
| IP RATE: | IP65 |
