| Size | |

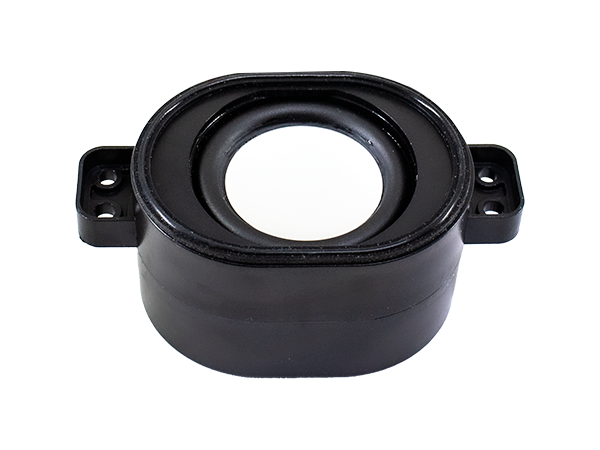

| Shape: | Square Type |
| Dimensions(mm): | 67.00*38.00*28.80 |
| Electrical Characteristics | |
| Rated Input (W): | 3.00 |
| Max. Input (W): | 5.00 |
| Impedance(Ω): | 8±15%@2.0KHz 1.0V |
| FO (Hz): | 550±20%@1.0V |

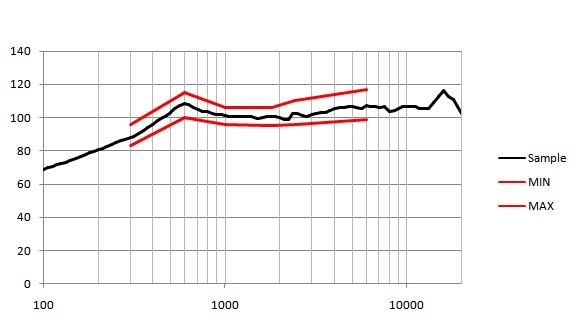

| SPL(dB): | 101±3dB(3W/10CM)@AVG 0.8K, 1.0K, 1.5K, 2.0KHz |
| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -30~60 |
| Material: | SPCC |
| IP RATE: | IPX8 |
