| Size | |
| Shape: | Square Type |
| Dimensions(mm): | 99.50*44.70*21.00 |
| Electrical Characteristics | |
| Rated Input (W): | 5.00 |
| Max. Input (W): | 6.00 |
| Impedance(Ω): | 8±15%@1.0KHz |
| FO (Hz): | 450±20%@1.0V |
| SPL(dB): | 94±3dB(1W/0.1m)@AVG 0.6K, 0.8K, 1.0K, 1.2KHz |

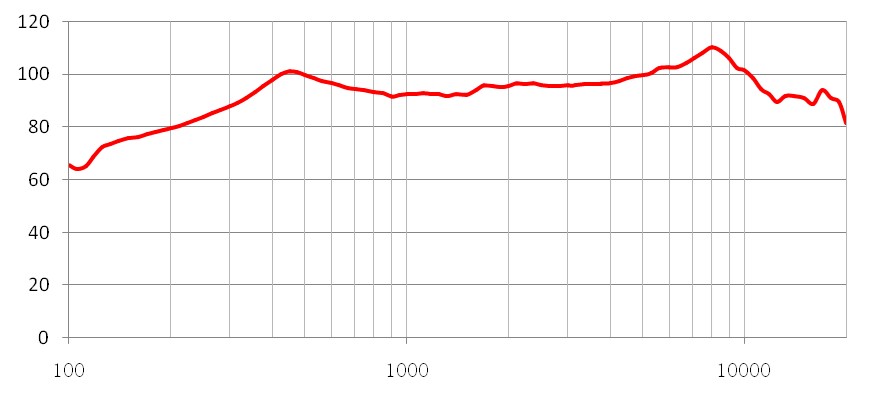

| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -20~50 |
