| Size | |

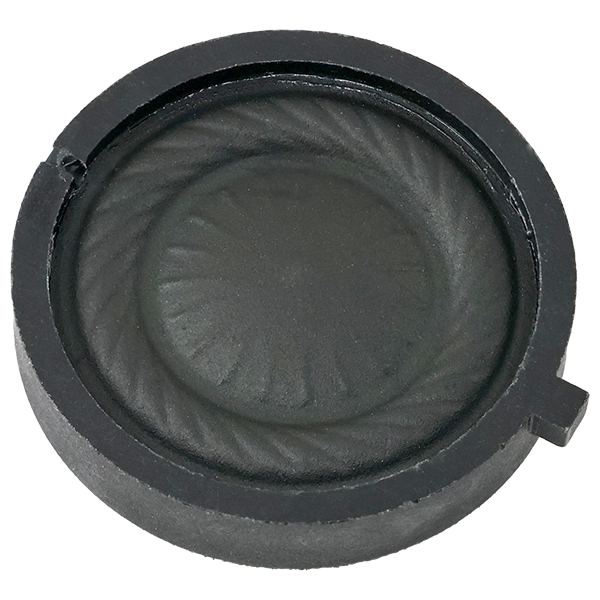

| Shape: | Round Type |
| Dimensions(mm): | 22.50*7.00 |
| Electrical Characteristics | |
| Rated Input (W): | 1.00 |
| Max. Input (W): | 1.50 |
| Impedance(Ω): | 4±15%@2.0KHz 1.0V |
| FO (Hz): | 650±20%@1.0V |

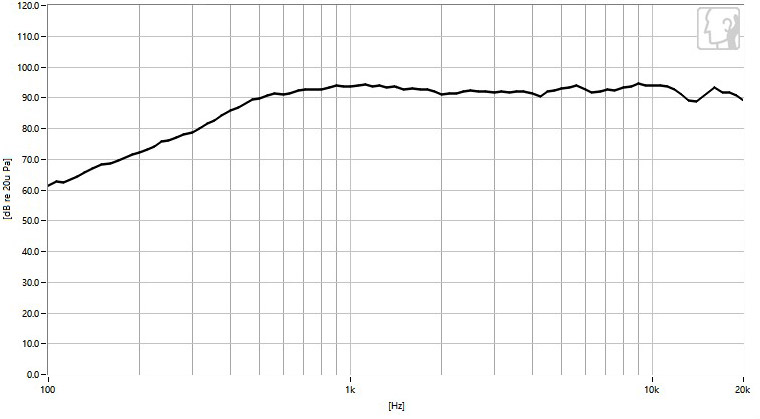

| SPL(dB): | 93±3dB(1.0W/10cm)@1.0KHz |
| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -25~60 |
