Size
Installation:	PIN Type
Dimensions(mm):	12.00*9.00

Electrical Characteristics
Voltage:	8.0 ~ 16.0
Max current consumption(mA):	Max. 65
Coil resistance(Ω):	140± 20

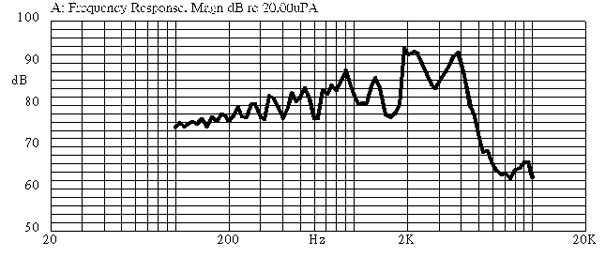

SPL(dB):	Min.85 (Typical 90)@ 2048Hz, Square wave/10cm
Frequency(KHz):	2,048Hz

Others
Operation Temp.(℃):	-40~85
Storage Temp.(℃):	-40 ~ +85
Material:	PBT (Black)
