| Size | |
| Shape: | Square Type |
| Dimensions(mm): | 30.00*20.00*7.00 |
| Electrical Characteristics | |
| Rated Input (W): | 1.50 |
| Max. Input (W): | 2.00 |
| Impedance(Ω): | 8±15%@3.0KHz 1.0V |
| FO (Hz): | 1,700±20%@1.0V |

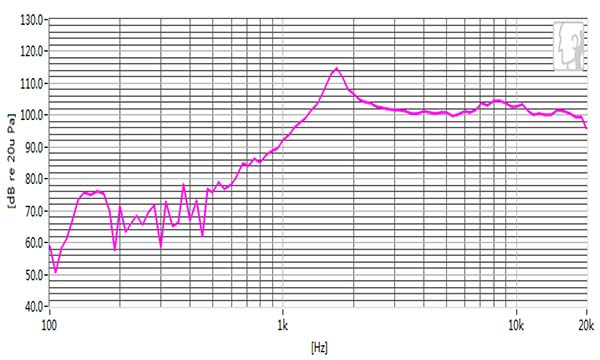

| SPL(dB): | 100±3dB(1.5W/10cm)@AVG 3.0K, 4.0K, 5.0K, 6.0KHz |
| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -40~70 |
| Material: | PBT |
| IP RATE: | IP67 |
