| Size | |
| Shape: | Square Type |
| Dimensions(mm): | 39.60*25.00*6.60 |
| Electrical Characteristics | |
| Rated Input (W): | 1.00 |
| Max. Input (W): | 1.50 |
| Impedance(Ω): | 8±15%@2.0KHz 1.0V |
| FO (Hz): | 1,100±20%@1.0V |

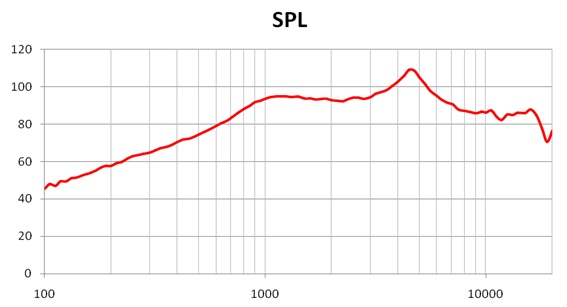

| SPL(dB): | 93±3dB (1.0W/10cm) @2.0KHz |
| Frequency(Hz): | Fo---5K |
| Others | |
| Operation Temp.(℃): | -40~70 |
| Material: | PC+ABS |
| IP RATE: | IPX8 |
