RFQ |
 |
| Size | |
| Shape: | Round Type |
| Dimensions(mm): | 69.70*29.00 |
| Electrical Characteristics | |
| Rated Input (W): | 4.00 |
| Max. Input (W): | 5.00 |
| Impedance(Ω): | 4±15%@2.0KHz |
| FO (Hz): | 420±20%@1.0V |

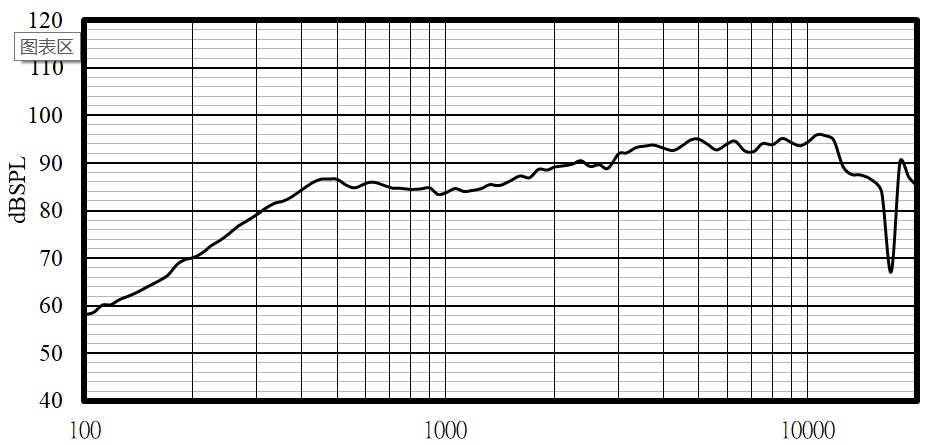

| SPL(dB): | 86±3dB(1W/0.5m)@AVG 1.0K, 1.2K, 1.5K, 2.0KHz |
| Frequency(Hz): | Fo---20K |
| Others | |
| Operation Temp.(℃): | -30~70 |
| Material: | PC+ABS |
