| Size | |
| Shape: | Square Type |
| Dimensions(mm): | 23.75*33.75*1.50 |
| Electrical Characteristics | |
| Rated Input (W): | 1.00 |
| Max. Input (W): | 1.50 |
| Impedance(Ω): | 4±15%@1.0KHz 1.0V |
| FO (Hz): | 550±20%@1.0V |

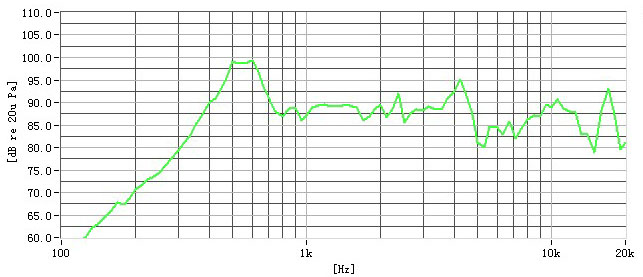

| SPL(dB): | 90 ± 3dB(0.1W/0.1m)@AVG 0.8K, 1.0K, 1.2K, 1.5KHz |
| Frequency(Hz): | Fo---5K |
| Others | |
| Operation Temp.(℃): | -10~60 |
