RFQ |
 |
| Size | |
| Shape: | Round Type |
| Dimensions(mm): | 28.00*5.50 |
| Electrical Characteristics | |
| Rated Input (W): | 2.00 |
| Max. Input (W): | 2.50 |
| Impedance(Ω): | 8±15%@2.0KHz 1.0V |
| FO (Hz): | 700±20%@1.0V |

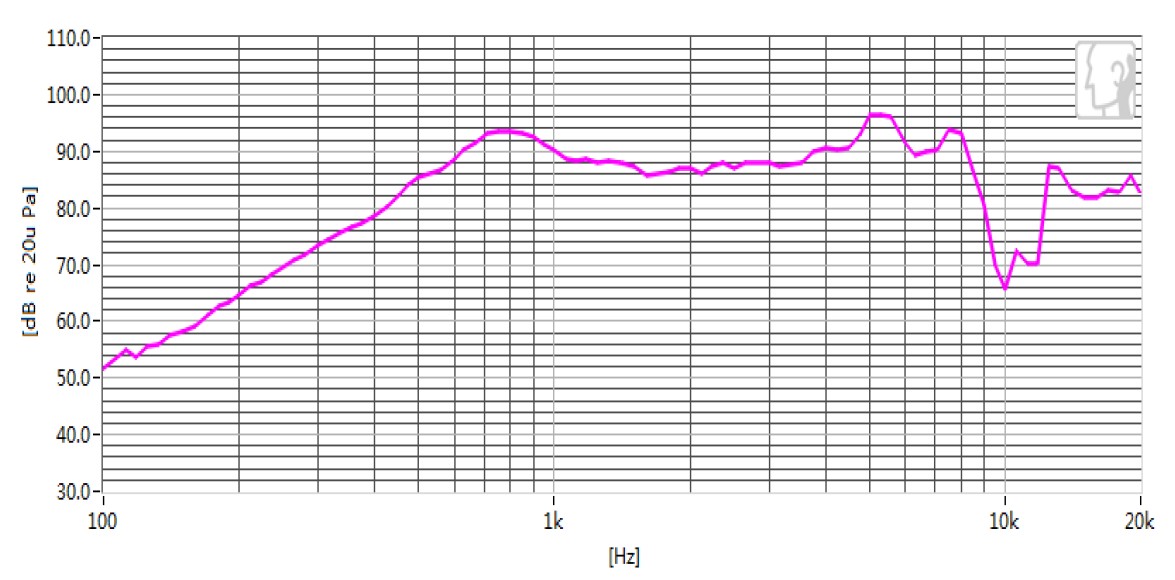

| SPL(dB): | 88±3dB(0.1W/10cm)@AVG 1.0K, 1.2K, 1.5K, 2.0KHz |
| Frequency(Hz): | Fo---9K |
| Others | |
| Operation Temp.(℃): | -40~85 |
| Material: | Metal |
